How to Draw Lewis Structures: Simple Steps That Make Sense

Staring at a general chemistry page full of dots and lines can feel like someone handed you a map in a language you never studied. Those scattered dots and strange lines? They follow simple, logical rules once someone walks you through them.

Consider this your step-by-step tutorial on how to draw Lewis structures: real examples, repeatable rules, zero intimidation. You'll find practical tips that turn complex chemical equations into a logical, solvable puzzle.

That's exactly the idea behind Nibble. It turns subjects that once made your eyes glaze over into quick, enjoyable daily moments. Bite-sized lessons, quizzes that stick, and zero homework feeling. Just curiosity, fed daily.

Try Nibble today and make sense of the world around you.

Here's the whole process at a glance before we break each step down.

1. Find the total number of valence electrons using the periodic table.
2. Choose the least electronegative element as your central atom.
3. Connect the outer atoms to the center with a single bond.
4. Add remaining electrons to complete the octet rule for outer atoms.
5. Form double or triple bonds if the center needs more electrons.

✨ Molecules aren't just random clusters; they're precise blueprints of the physical world. Stop guessing where the dots go and start mastering the hidden logic of chemical bonds with Nibble.

Lewis dot structures are simple diagrams that show how atoms join to form molecular compounds.

The dots represent valence electrons, while the lines show shared pairs of electrons, also known as covalent bonds. Chemists use these blueprints to predict how a molecule will behave in the real world.

Knowing the layout helps you grasp everything from the water you drink daily to the chemical equations behind complex organic chemistry reactions. Lewis structures also tell you whether a molecule is nonpolar (like CO₂, where the bond dipoles cancel out) or polar (like water, where they don't).

They're also the starting point for VSEPR theory, which uses your completed diagram to predict a molecule's molecular geometry, its actual 3D shape.

Let's map out how to draw Lewis structures step by step. We'll treat the whole process like a simple budgeting exercise.

Your first job is finding the total number of valence electrons. These live in the outermost valence shell of an atom. You can find this number by checking the group number on the periodic table. If you already know your electron configurations, looking at the outermost shell directly works just as well.

For polyatomic ions, add one electron for every negative charge and subtract one for every positive charge. This step is basically arithmetic. If fractions and basic number operations feel rusty, our guide to dividing fractions is a quick way to brush up before you start.

The central atom goes right in the middle of your drawing. You'll usually pick the least electronegative element for that spot.

Two exceptions: hydrogen always goes on the outside because it can only ever form one bond, and oxygen rarely sits in the center except in a handful of specific molecules.

Hydrogen only wants a duet of electrons, making it the true introvert of the periodic table. It's perfectly happy sitting alone in its valence shell on the outside.

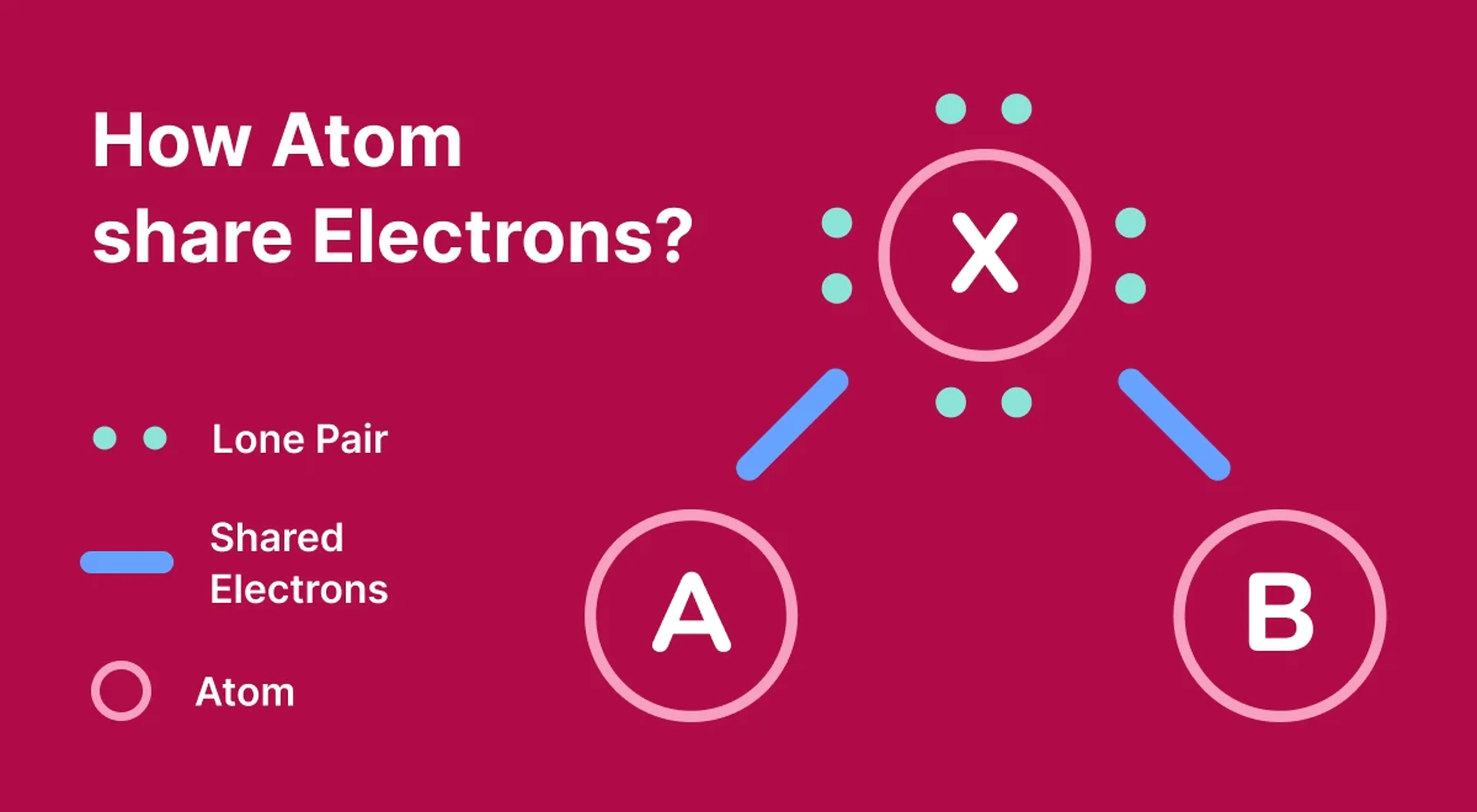

Place your outer atoms around the center and connect them with a single bond. Every single line you draw represents one shared electron pair: two electrons working together to hold the atoms in place. Subtract two electrons from your total budget for each line.

Take your remaining electrons and spread them as lone pairs around the outer atoms. Work from the outside inward. Keep adding dots until each outer atom has exactly eight electrons, which satisfies the octet rule.

The shape that forms around the central atom depends on how many lone pairs and bonds it has. If geometric shapes feel unfamiliar, our explainer on regular polygons is a helpful starting point for thinking about symmetry in molecules.

Check your central atom to see if it has eight electrons. If it falls short, you need to share more. Take a lone pair from an outer atom and turn it into a double bond or even triple bonds. Sharing fixes the deficit without changing the total number of electrons.

✨ Your morning coffee and the air you breathe follow the exact same "social rules" of the periodic table. Trade your routine for 10-minute deep dives into the science that explains everything around you on Nibble.

Applying these rules to a few common molecules makes the whole process feel much less intimidating.

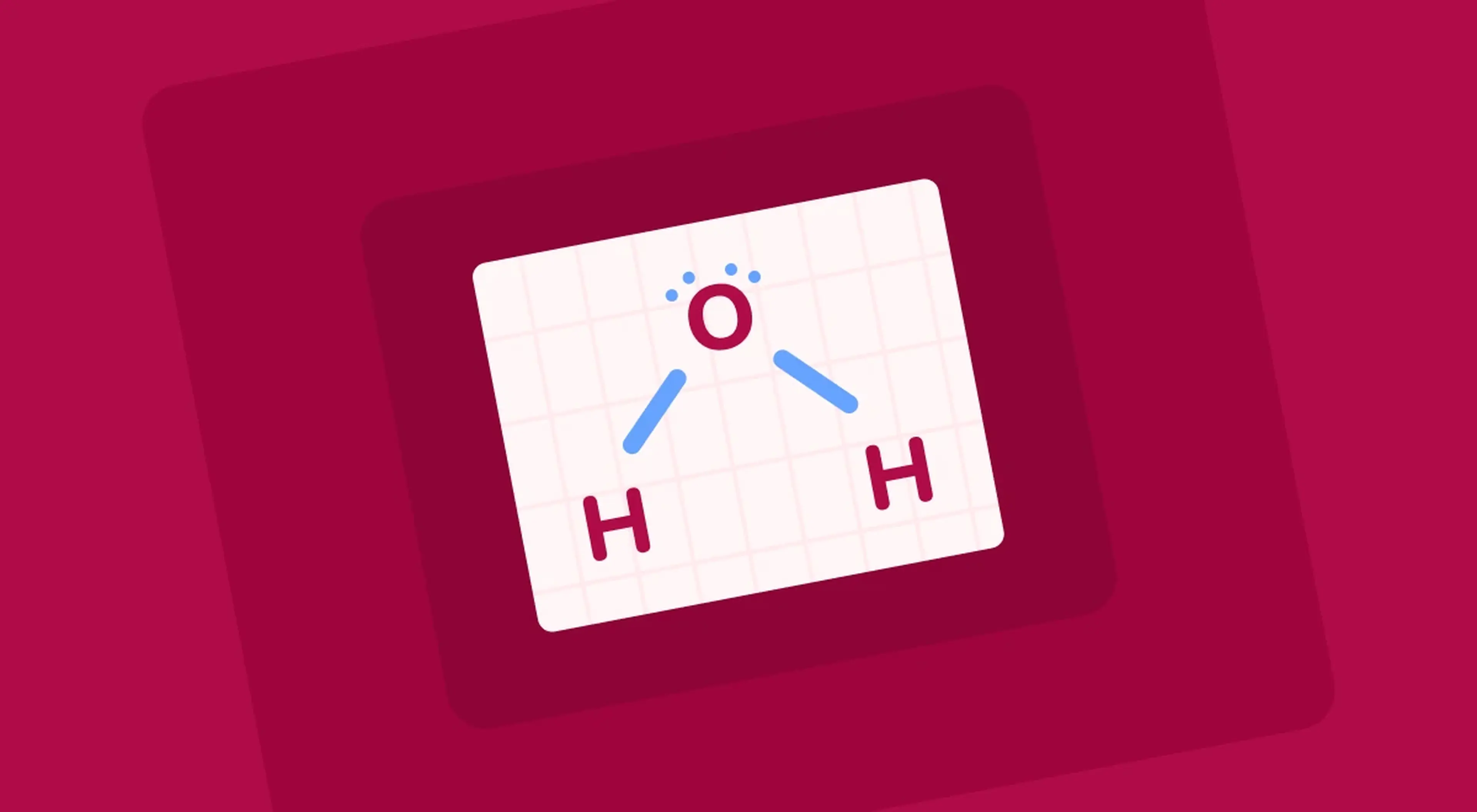

Oxygen sits in the center. Hydrogen atoms go on the outside. You have eight total electrons. Two single bonds use up four electrons. The last four go on oxygen as lone pairs. It's the molecule you drank this morning. And now you can draw it.

Carbon goes in the center. After drawing single bonds and filling the oxygen atoms, carbon is short on electrons. You need to form a double bond on both sides so all atoms satisfy the octet rule. Yes, the same carbon dioxide you exhale. Chemistry really is everywhere.

Nitrogen sits in the middle with three hydrogen outer atoms. The single bonds use six electrons. The remaining two sit right on top of the nitrogen atom as a lone pair.

The three bonds push into a triangular arrangement. If you want to see how that geometry works on a flat plane, our explainer on equilateral triangles connects the dots nicely.

Formaldehyde might be better known from crime dramas than chemistry class, but it's a great example of a molecule with a double bond built right into the structure. Carbon sits in the center, bonded to two hydrogen atoms and one oxygen atom.

After placing single bonds and filling oxygen's octet, carbon still comes up short. So one lone pair from oxygen becomes a double bond. Carbon ends up with exactly eight electrons, and the structure is complete.

Nitrogen gas is the molecule that makes triple bonds click. Each nitrogen atom has five valence electrons. A single bond leaves both atoms with only six electrons. That's not enough. A double bond still leaves them short.

Only a triple bond satisfies both atoms' octets, using all remaining electrons perfectly. The result is one of the strongest bonds in chemistry, which is exactly why the nitrogen making up 78% of the air around you is so chemically inert. It simply doesn't want to react with anything.

✨ Triple bonds are the chemical equivalent of a "do not disturb" sign for nitrogen gas. Skip the academic burnout and decode the high-strength secrets of atomic architecture with the interactive lessons on Nibble.

Even experienced students trip up on basic details. Keep an eye on these frequent traps.

Forgetting the total count. Always recount your dots and lines at the end. Your Lewis dot diagrams must match your initial electron budget.

Overfilling hydrogen. Hydrogen only ever has one line connecting it. A proton combined with one electron needs just one more to be full. That's it.

Ignoring formal charge. If multiple drawings seem correct, calculate the formal charge. The formula compares the total number of electrons an atom owns in the structure versus what it has as a neutral atom. The best structure keeps those formal charges as close to zero as possible.

Nature loves to break its own rules. Some elements simply refuse to follow the standard eight-electron limit.

1. Incomplete octet (boron). Boron in its simplest compounds (BF₃ is the classic example) is perfectly stable with just six electrons around it. They're rebels who don't need a full octet. Force boron to take eight and you often end up with a less stable, higher-energy structure.

2. Expanded octet (phosphorus, sulfur). Elements in the third row and below (phosphorus and sulfur are the go-to examples) can hold 10 or even 12 electrons around the central atom.

The traditional explanation involves their available d orbitals, and those atomic orbitals mixing to form new bonding configurations is also the foundation of hybridization. For general chemistry purposes, the d orbital explanation gets you where you need to go.

3. Resonance structures. Some molecules can't be fully captured by a single Lewis diagram. Ozone (O₃) is the classic case. The real molecule sits somewhere between two valid drawings, so chemists draw both and place a double-headed arrow between them.

Neither structure alone is "wrong," but neither is fully right either. The best resonance structures are the ones with formal charges closest to zero.

Once you know how to draw Lewis structures, chemistry stops feeling like a puzzle with missing pieces. New concepts take time to click, but a little daily practice goes a lot further than one long, painful study session.
